Description

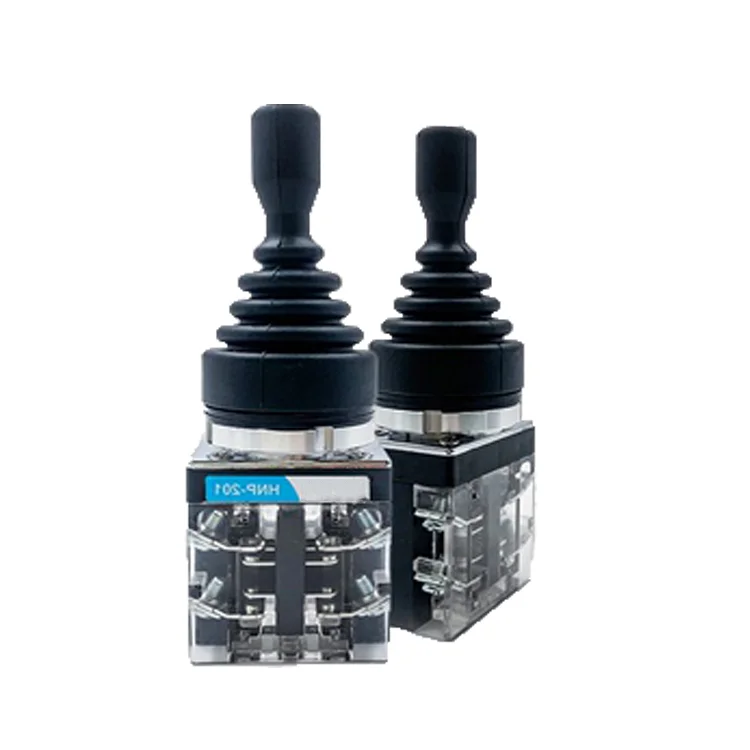

Product Overview

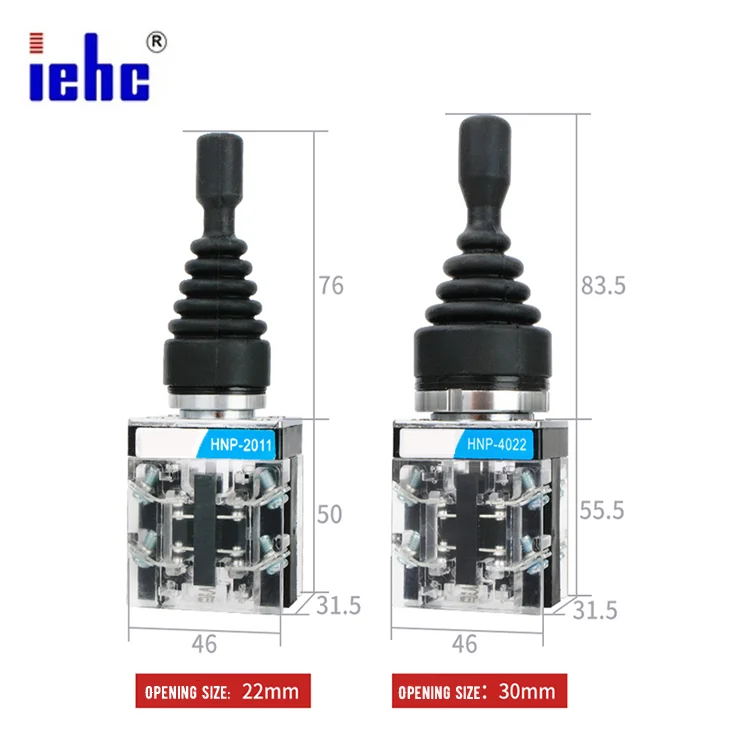

Model Variations & Specifications
- Mounting Hole Size: 22mm – Ideal for tighter spaces or smaller control panels.
- Dimensions: Base width 46mm x 31.5mm; Total height approx. 76mm.
- Application: Suitable for light-duty control tasks where panel space is limited.
- Mounting Hole Size: 30mm – The industry-standard size for most heavy machinery panels.
- Dimensions: Base width 46mm x 31.5mm; Total height approx. 83.5mm.
- Application: Designed for standard crane pendants, machine tool consoles, and heavy equipment requiring a more substantial grip.
Key Features
- Ergonomic Design: The textured joystick handle ensures precise tactile feedback, allowing operators to maintain accurate control even during extended shifts.
- Sealed Protection: The integrated rubber boot acts as a primary seal against harsh workshop elements, ensuring long-term electrical reliability.
- Visual Inspection: The clear base housing eliminates the need to remove screws just to check if a wire has come loose.
- Standard Mounting: Fits universally into 22mm or 30mm pre-drilled panels, secured by the provided locking nut.
Applications
- Overhead Cranes and Hoists
- Construction Machinery
- Machine Tools (Lathes, Milling Machines)
- Conveyors and Material Handling Systems
FAQ
What is the main difference between HNP-2011 and HNP-4022?
The primary difference is the mounting hole diameter. The HNP-2011 requires a 22mm cutout, while the HNP-4022 requires a larger 30mm cutout. Please measure your panel hole before ordering.
Is the joystick handle removable?
Yes, the handle is typically threaded onto the shaft. However, it is secured tightly to prevent loosening during vibration. Replacement handles can be sourced if damaged.
Can I see the wiring terminals?
Yes, the base features a transparent polycarbonate cover. This design allows you to inspect the terminal connections and wiring status without removing the cover, which aids in troubleshooting.
What is the IP rating of this switch?
Thanks to the rubber accordion boot sealing the shaft, these switches generally offer good protection against dust and splashing water (typically IP65 for the front panel), making them suitable for industrial workshops.
Does this switch come with a key lock?
The standard models shown (HNP-2011/4022) are manual joystick switches without key locks. If you require a key-operated version for security, please check our "Key Selector Switch" category.
