Product Description
COB-6 Series Crane Pendant Control Switch for Electric Hoists
The COB-6 Series Crane Pendant Control Switch is a wired industrial control station designed for electric hoists, overhead cranes, lifting machinery, and material handling equipment. With multiple button configurations and an orange handheld enclosure, this series provides a practical solution for operators who need direct control of industrial machinery.
The COB-6 series includes 2, 4, 6, and 8-directional-button versions, with selected models featuring additional start, stop, or mushroom-head buttons. Buyers can choose a configuration according to the required machine movements and control functions.
Key Features of COB-6 Series Pendant Control Switch
- Multiple Button Configurations: Available with 2, 4, 6, or 8 directional push buttons.
- Additional Control Options: Selected models include start/stop buttons or a red mushroom-style actuator.
- Industrial Plastic Housing: Orange enclosure designed for handheld control applications.
- Clear Direction Labels: Push buttons are marked to identify machine movement commands.
- Wired Control Design: Suitable for connection to compatible electrical control circuits.
- Different Housing Sizes: Compact models for basic lifting operations and longer versions for multi-direction control.
Available COB-6 Series Models

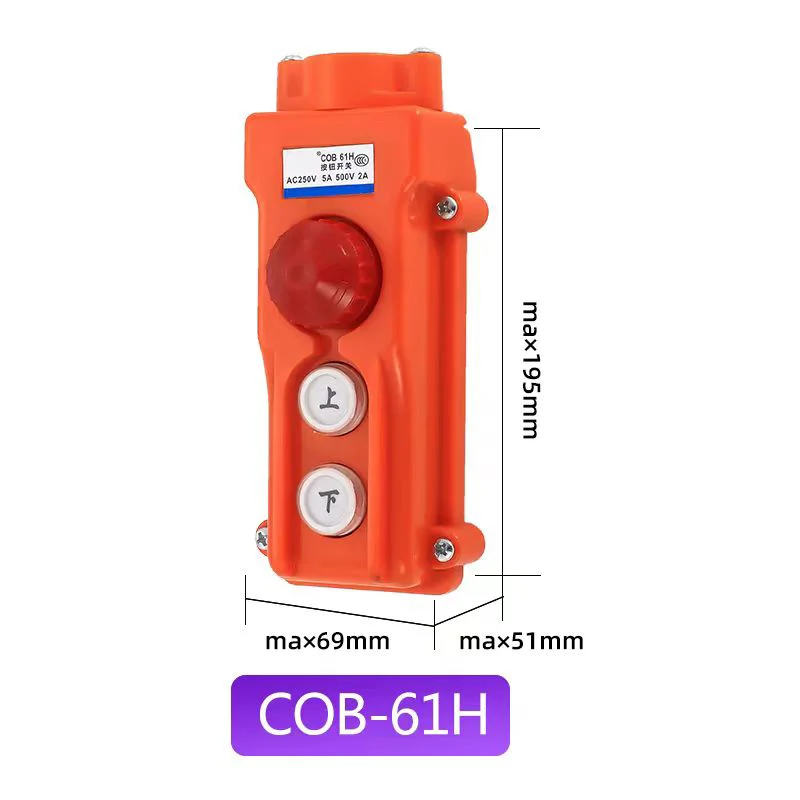

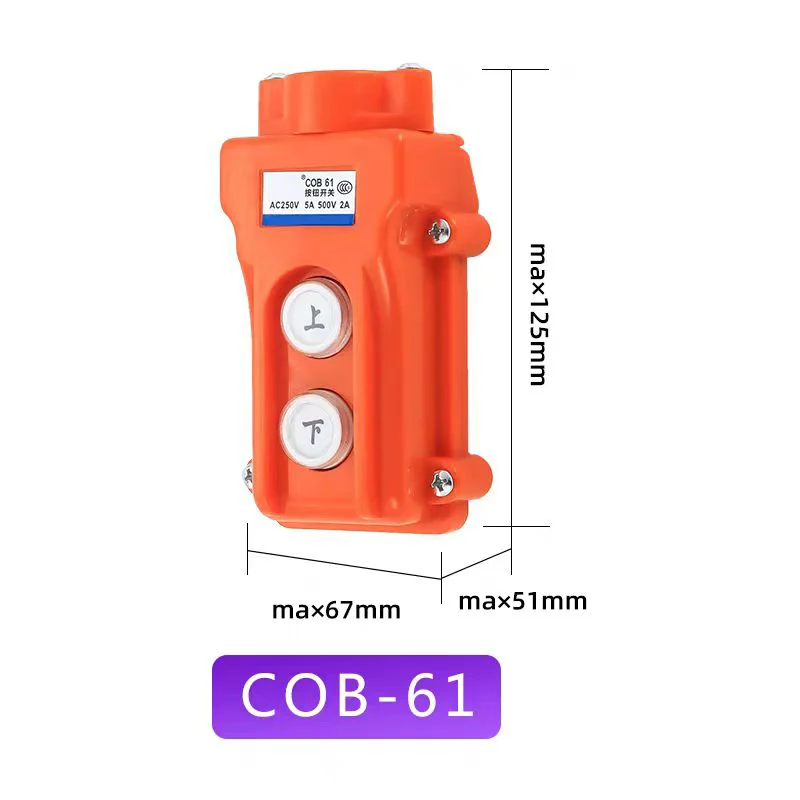

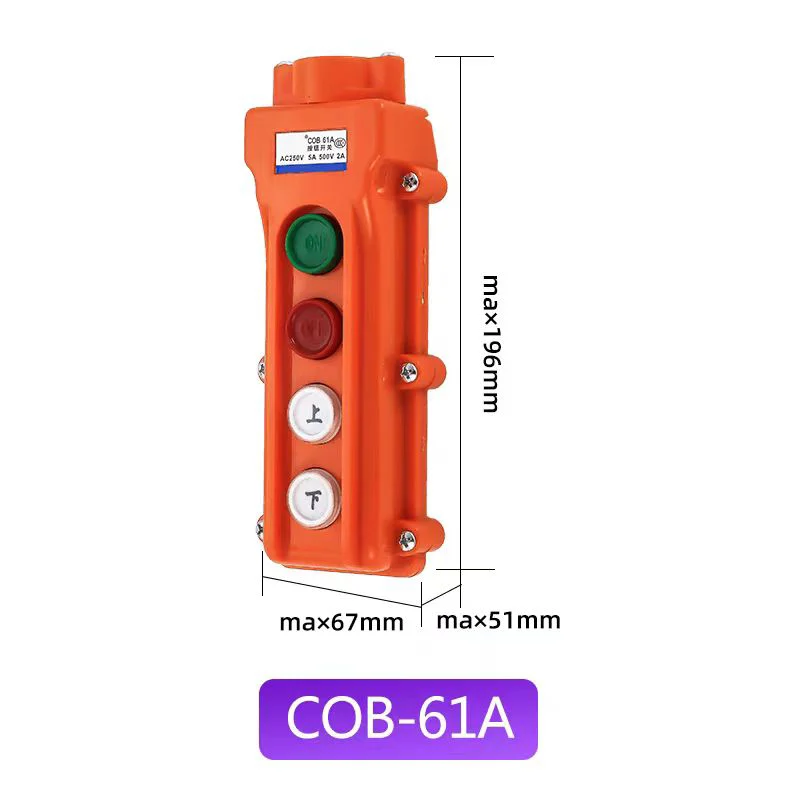

COB-61 Series – 2 Directional Buttons
Suitable for basic lifting and lowering commands on compatible electric hoists.
Available versions include COB-61, COB-61A, and COB-61H.

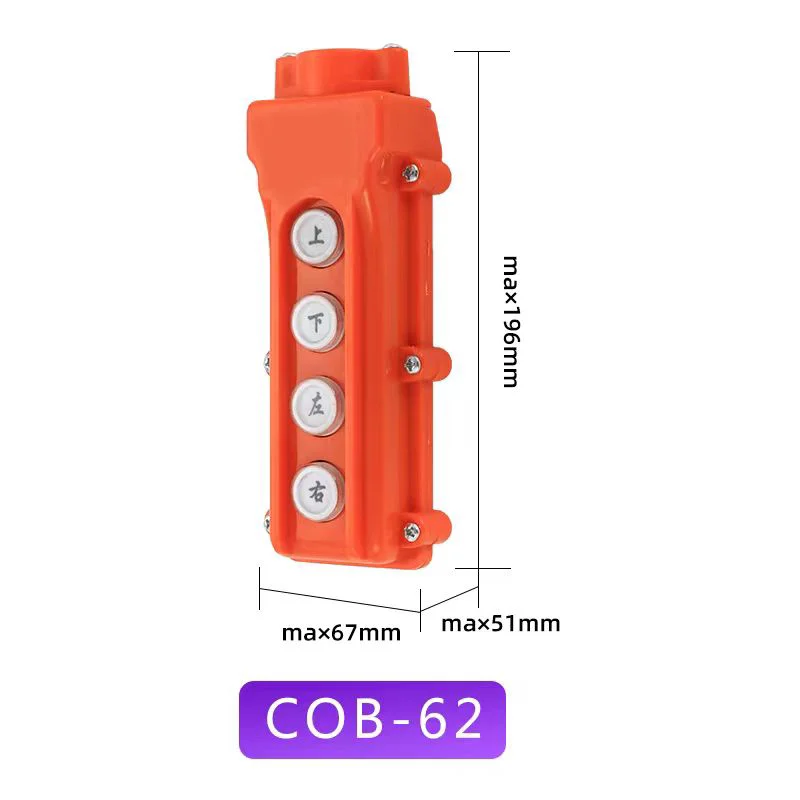

COB-62 Series – 4 Directional Buttons
Designed for applications requiring two pairs of movement commands, such as lifting and transverse travel.
Available versions include COB-62, COB-62A, and COB-62H.

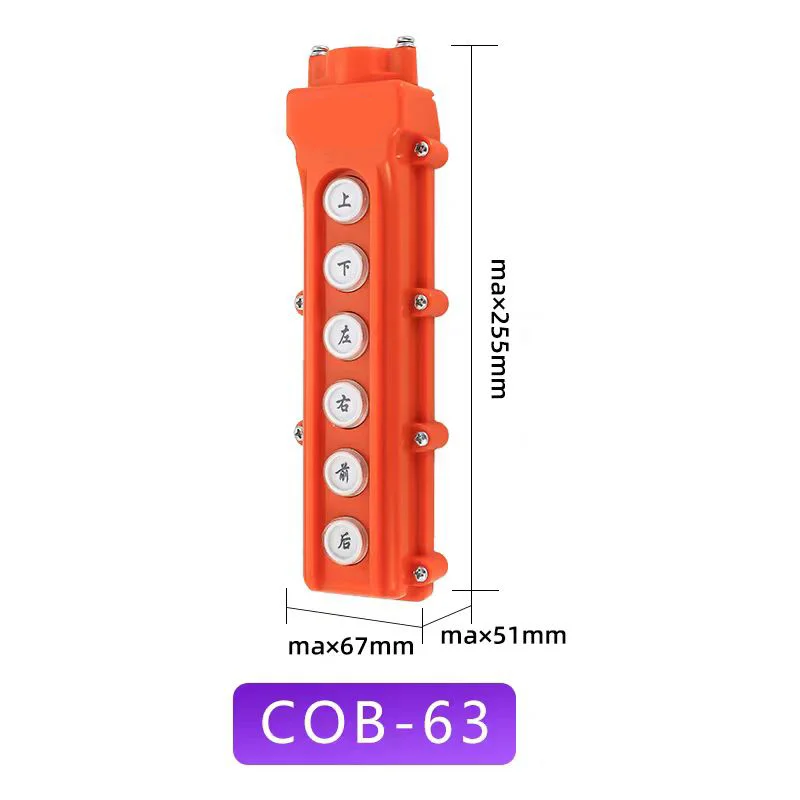

COB-63 Series – 6 Directional Buttons
Provides three pairs of directional commands for industrial cranes and material handling equipment.
Available versions include COB-63, COB-63A, and COB-63H.

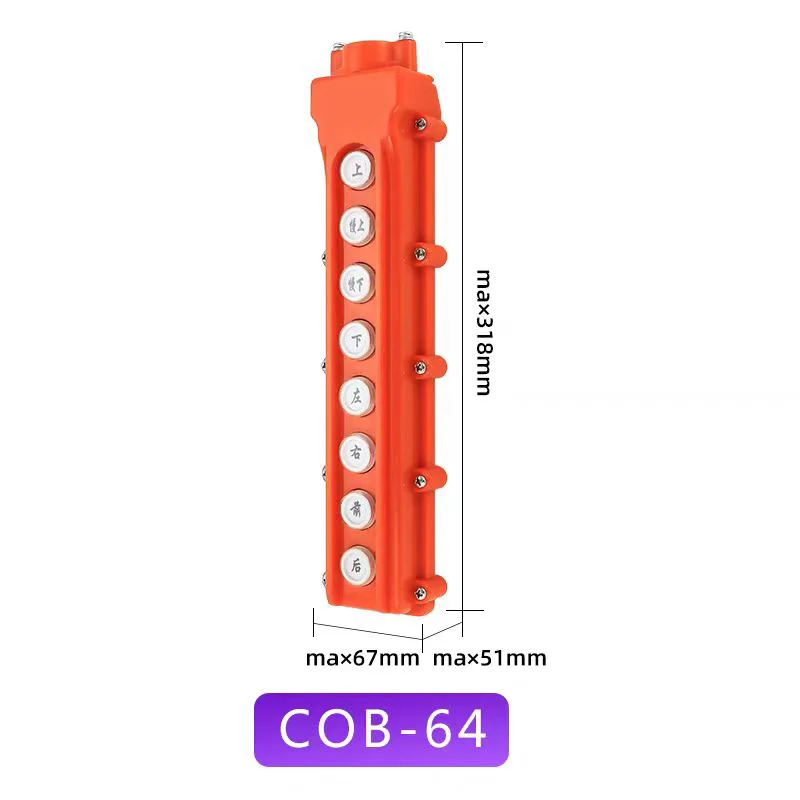

COB-64 Series – 8 Directional Buttons
Offers four pairs of movement commands for machinery with additional control requirements.
Available versions include COB-64, COB-64A, and COB-64H.

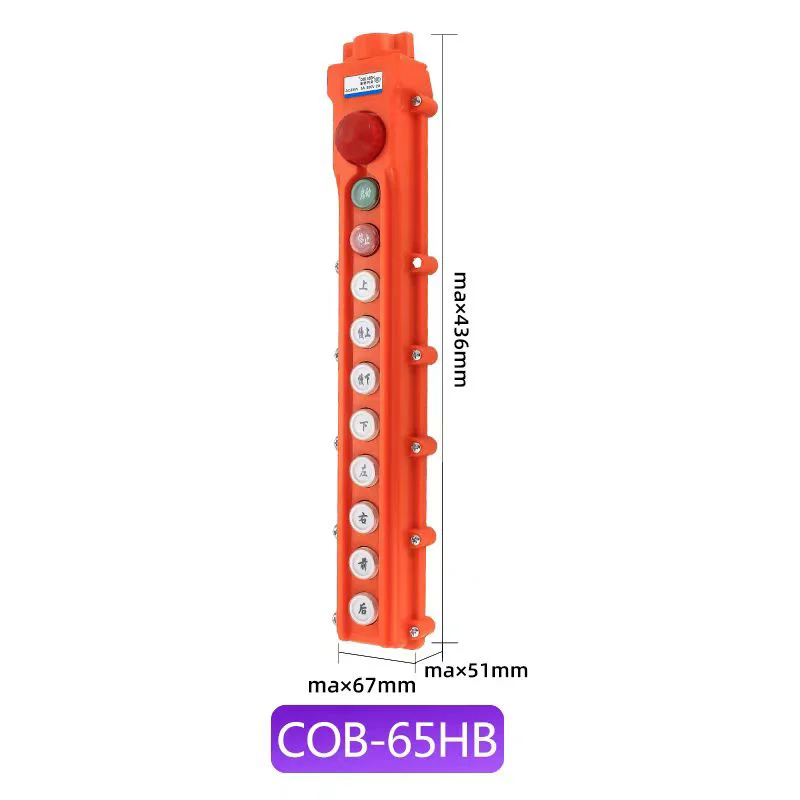

COB-65HB – Extended Control Configuration
Features eight directional buttons together with additional start, stop, and mushroom-style control actuators.
Flexible Control for Electric Hoists and Cranes
The COB-6 crane pendant control switch provides operators with direct access to equipment movement commands.
For simple hoisting applications, a two-button pendant may provide the required up and down functions. Equipment requiring additional movement directions can use four, six, or eight-button configurations.
Selected models also incorporate start and stop controls. The exact operating functions depend on the selected switch contacts, wiring arrangement, and connected control equipment.
Industrial Applications
Electric Hoists
Suitable for lifting and lowering commands on compatible hoisting systems.
Overhead Cranes
Provides operator controls for lifting, travel, and additional machine movements.
Industrial Workshops
Can be integrated into workshop lifting systems and equipment control panels.
Material Handling Machinery
Supports multiple directional commands for compatible industrial transport and positioning equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | COB-6 |
| Product Type | Crane Pendant Control Switch |
| Control Method | Wired Push-Button Control |
| Directional Buttons | 2 / 4 / 6 / 8 |
| Additional Buttons | Depending on Model |
| Enclosure Color | Orange |
| Material | Plastic Housing |
| Maximum Width | 67 / 69 mm, Depending on Model |
| Maximum Depth | 51 mm |
| Overall Length | 125–436 mm, Depending on Model |
| Typical Equipment | Electric Hoists, Overhead Cranes |
Electrical contact ratings, enclosure protection ratings, and safety certifications must be verified for the supplied model.
Why Choose IEHC?
IEHC supplies industrial control products for equipment manufacturers, machinery distributors, maintenance companies, and industrial buyers.
The product range includes control handles, pendant control stations, industrial push-button switches, and wireless control systems for lifting and material handling applications.
For COB-6 series orders, customers can inquire about available models, button arrangements, electrical specifications, and applicable OEM purchasing requirements.
FAQ
What is the COB-6 series crane pendant control switch used for?
The COB-6 series is designed to provide wired push-button commands for compatible electric hoists, cranes, and industrial lifting equipment.
How many buttons are available in the COB-6 series?
Directional-button configurations include 2, 4, 6, and 8 buttons. Some versions include additional start, stop, or mushroom-style control buttons.
What is the difference between COB-61 and COB-64?
COB-61 provides two directional buttons for basic lifting controls, while COB-64 provides eight directional buttons for more complex machine movement requirements.
How should buyers select a COB-6 pendant control switch?
Buyers should confirm the required number of control commands, electrical contact ratings, wiring arrangement, operating environment, and compatibility with the machinery control system.
