COP-AS1 Hoist Pendant Control Switch for Electric Lifting Equipment
The COP-AS1 Hoist Pendant Control Switch is a compact wired control station designed for electric hoists, lifting equipment, and industrial machinery requiring two-direction operation. Featuring two black push buttons and a red mushroom-head stop actuator, it provides a practical handheld interface for compatible motor control circuits.

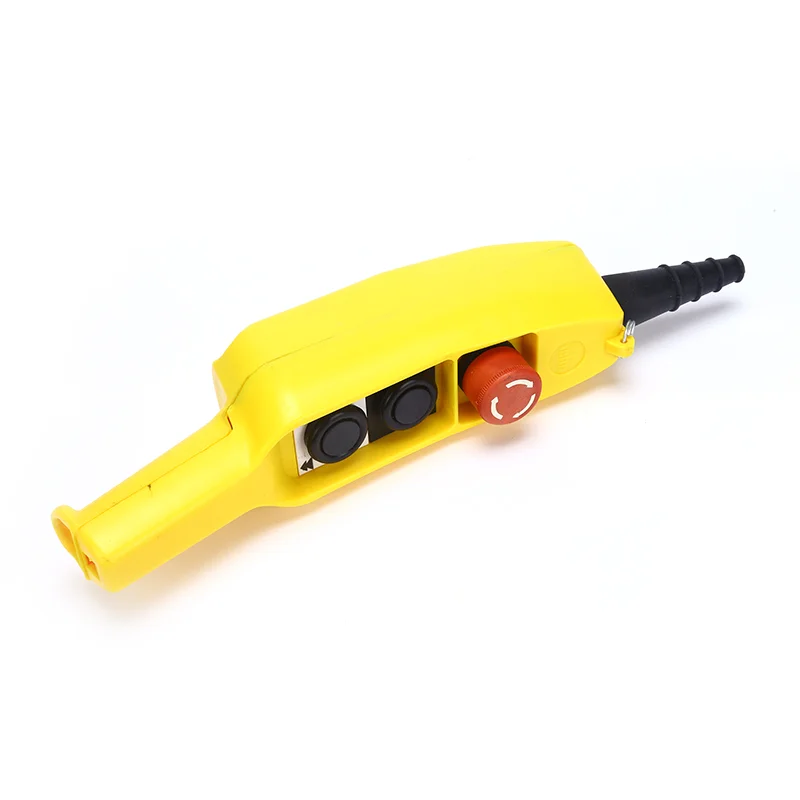

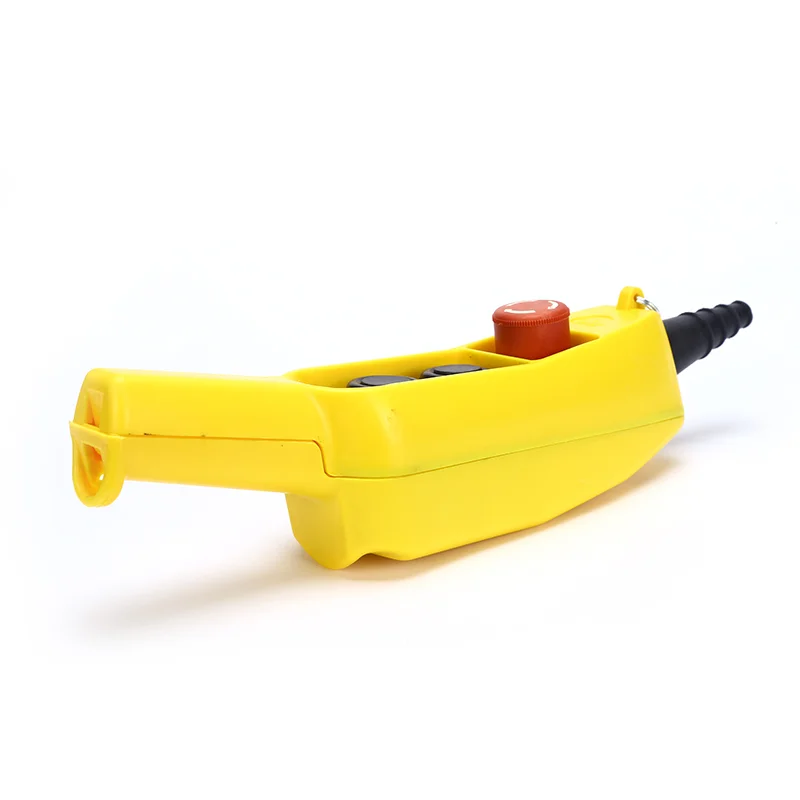

The COP-AS1 adopts an elongated yellow enclosure with a recessed button layout, a flexible cable entry sleeve, and an integrated hanging ring. Its streamlined construction makes it suitable for installation in industrial environments where operators require convenient access to basic equipment controls.
Key Features of COP-AS1 Hoist Pendant Control Switch
- Two Directional Push Buttons: Provides two separate commands for lifting, lowering, or other opposing movements.
- Red Twist-Release Stop Button: Mushroom-head actuator with rotational release markings.
- Ergonomic Handheld Design: Slim yellow enclosure designed for convenient manual operation.
- Internal Contact Blocks: Independent contact modules with screw terminals for electrical connections.
- Flexible Cable Entry: Rubber cable sleeve accommodates incoming control wiring.
- Hanging Ring: Metal ring near the cable entry provides an additional hanging point.
- Enclosure Sealing Structure: The internal housing includes a perimeter gasket for improved enclosure sealing.
Two-Button Control for Electric Hoists
The COP-AS1 pendant control switch is designed for machinery requiring two basic movement commands.
In typical electric hoist applications, the two directional buttons can be assigned to raising and lowering operations. The corresponding control signals are transmitted through the wired connection to the equipment’s electrical control system.
The compact two-button arrangement helps operators identify the required command without navigating a larger control station.
For machinery requiring additional directional movements, a four-button or multi-button pendant control station may be more appropriate.
Red Mushroom-Head Stop Button

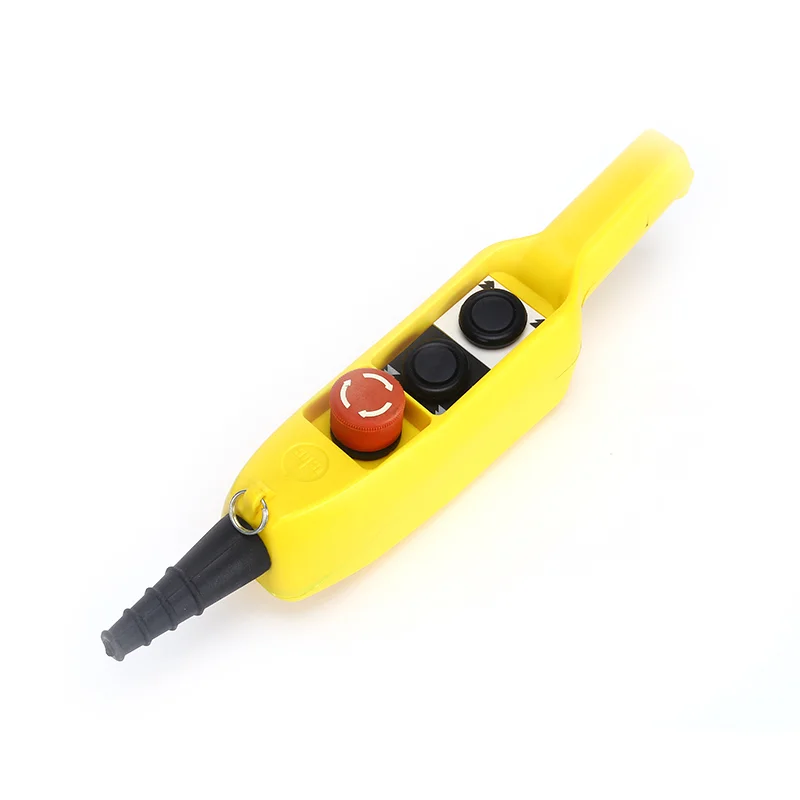

The COP-AS1 features a prominent red mushroom-style stop actuator positioned above the two directional buttons.
The button has rotational markings indicating a twist-release mechanism. Its recessed position within the yellow housing helps separate the stop actuator from the normal movement buttons.
The contact configuration, positive-opening characteristics, and suitability for an emergency-stop safety circuit should be confirmed against the supplied technical documentation before installation.
Internal Construction and Wiring

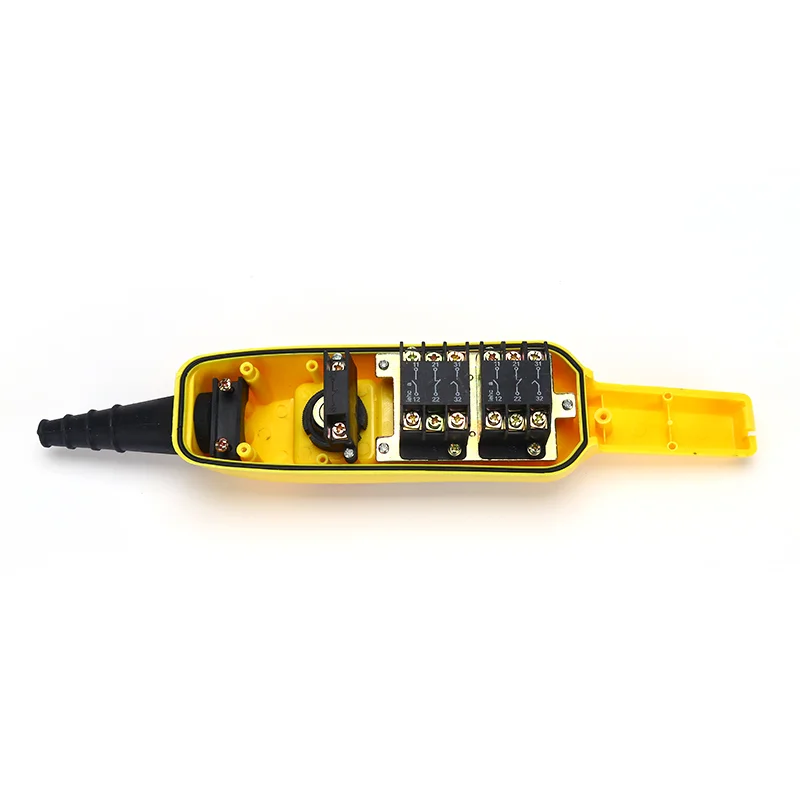

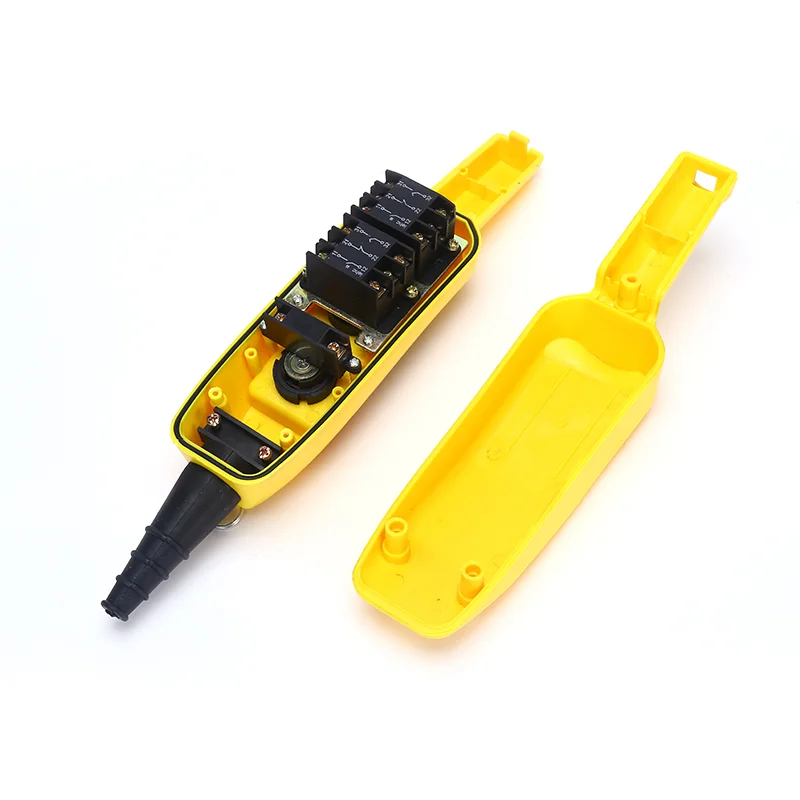

The COP-AS1 control handle features a removable enclosure cover, internal switch assemblies, and screw-type terminals.
The internal contact blocks provide connection points for wiring the control functions to compatible industrial equipment.
A rubber cable entry sleeve is positioned at one end of the housing, while an enclosure gasket follows the internal perimeter.
The final wiring arrangement should follow the machine manufacturer’s electrical diagram and the contact configuration of the selected switch.
Industrial Applications
Electric Hoists
Suitable for compatible lifting systems requiring up-and-down control commands.
Lifting Platforms
Can be integrated into appropriate lifting mechanisms requiring two-direction operation.
Industrial Winches
Provides a handheld command interface for compatible motor-driven winch control systems.
Workshop Machinery
Suitable for industrial equipment requiring two manual directional commands through a wired control circuit.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | COP-AS1 |
| Product Type | Hoist Pendant Control Switch |
| Control Method | Wired Push Button |
| Directional Buttons | 2 |
| Stop Actuator | Red Mushroom-Head, Twist-Release Style |
| Enclosure Color | Yellow |
| Enclosure Type | Handheld Plastic Housing |
| Contact Connection | Screw Terminals |
| Cable Entry | Flexible Rubber Sleeve |
| Hanging Provision | Metal Ring |
| Typical Applications | Electric Hoists and Lifting Equipment |
Electrical ratings, ingress protection, and contact configuration are subject to manufacturer confirmation.
Why Choose IEHC?
IEHC supplies industrial control equipment for machinery manufacturers, equipment distributors, and industrial procurement projects.
Its product portfolio includes pendant control stations, crane control handles, industrial push-button switches, and wireless remote control systems.
For electric hoist applications, customers can select products according to the number of control functions, electrical requirements, contact configuration, and operating conditions.
IEHC welcomes inquiries regarding control switch specifications, product compatibility, and industrial purchasing requirements.
FAQ
What is the COP-AS1 hoist pendant control switch used for?
The COP-AS1 is designed to provide two directional commands for compatible electric hoists, lifting machinery, and industrial equipment.
How many buttons does the COP-AS1 have?
The product features two black directional push buttons and one red mushroom-head stop actuator, giving three actuators in total.
Does the COP-AS1 have an emergency stop button?
The product features a red twist-release-style mushroom-head actuator. Its suitability for emergency-stop functions depends on the internal contacts and safety requirements of the connected machinery.
Can the COP-AS1 replace an existing electric hoist pendant switch?
It may be suitable for compatible equipment. Before replacement, confirm the control voltage, contact arrangement, wiring configuration, and required safety functions.
