Description

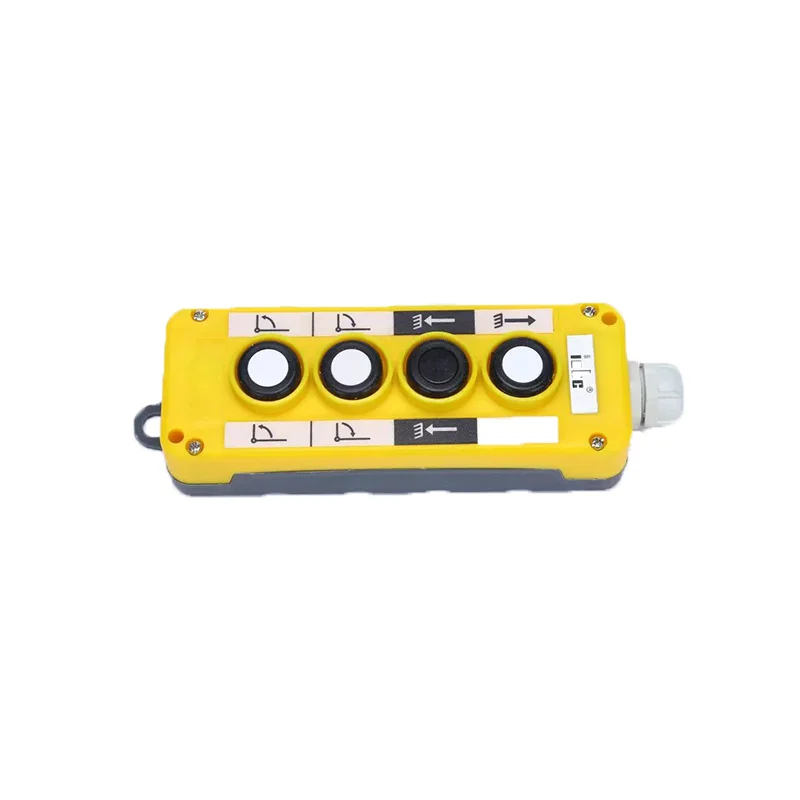

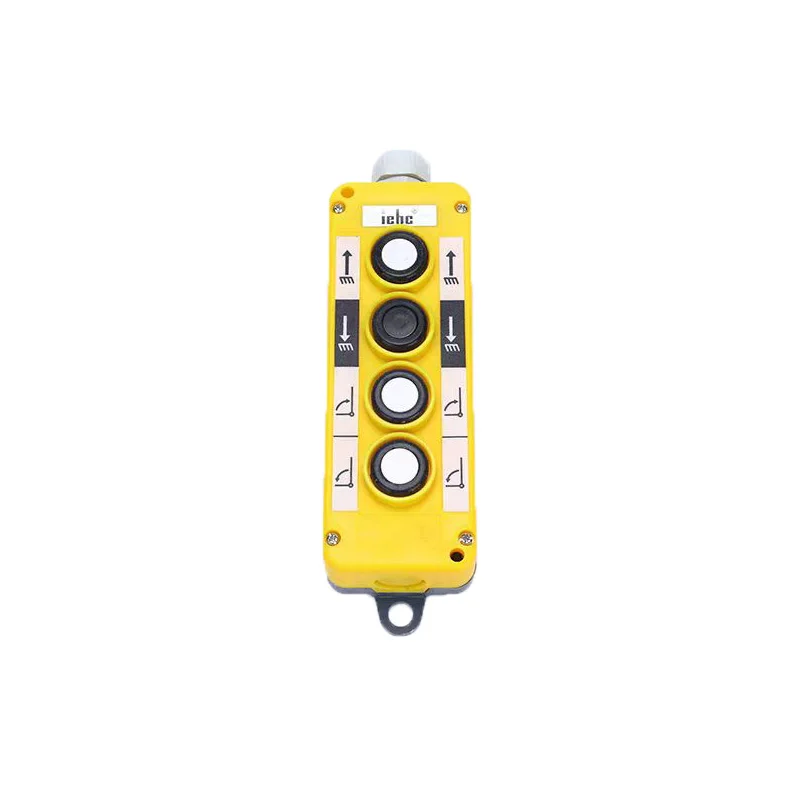

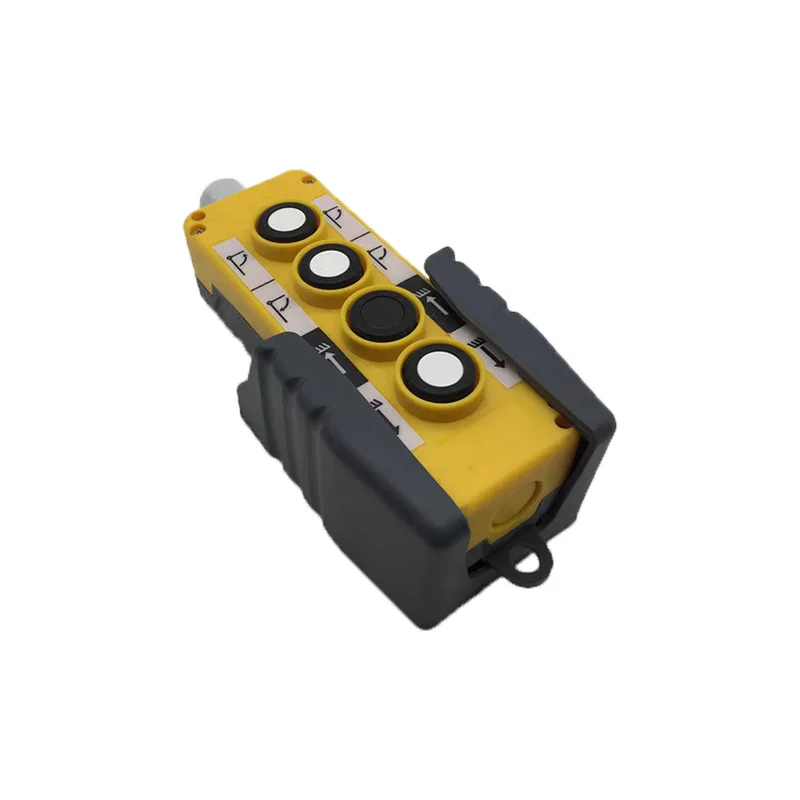

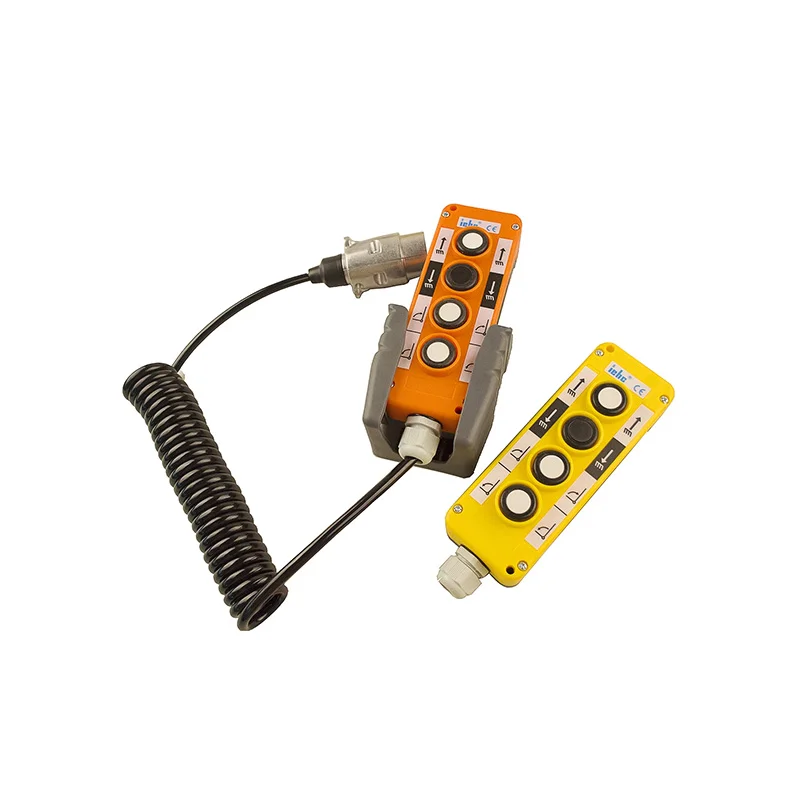

COP-4B is the four-button member of the COP hatch control family. It packs four spring-return push buttons into the same hand-sized enclosure, so a mechanism that needs four local functions can be operated from a single station instead of two separate boxes.
Four control functions in one station
Typical four-button duties are a pair of direction functions for a main actuator plus a pair for a secondary actuator, or two directions with separate stop and reset actions. Grouping them keeps the operator at one control point and avoids mixing controls from different boxes on the same machine.
The buttons follow the same legend layout as the rest of the range, so the function of each position stays readable in poor light and recognisable by touch.
Protection for wet and dusty service positions
The COP-4B enclosure is rated IP54: dust ingress is limited and water sprayed from any direction will not harm the station. It suits outdoor hatch service positions and dusty industrial surroundings, but is not designed for continuous immersion.
Spring-return push buttons
All four actuators are spring-return. The controlled function stops the moment the operator releases the button, which is the hold-to-run behaviour expected of jog controls on hydraulic drives.
Mounting and wiring
The cable enters through a gland at one end of the housing. Because the station carries more conductors than a two-button model, allow a generous bend radius at the gland and provide strain relief so the cable weight is not taken by the gland or terminals.
Verify continuity, insulation resistance and function assignment before the station enters service. Electrical connection and periodic inspection should be carried out by qualified personnel under the applicable local regulations.

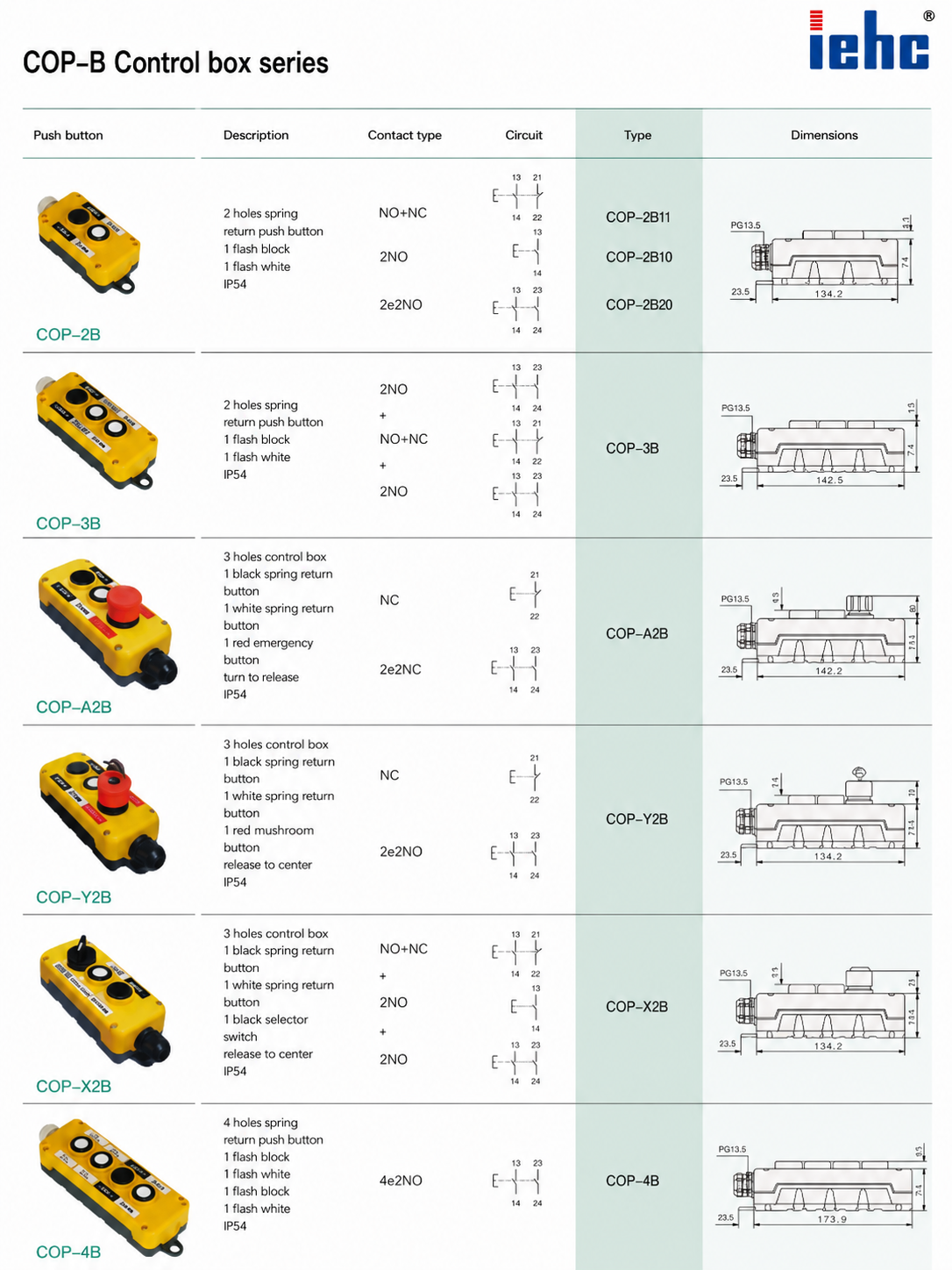

Specifications
| Model | COP-4B |
|---|---|
| Control functions | 4 spring-return push buttons |
| Enclosure protection | IP54 |
| Mounting | Surface / panel mounting with mounting tab |
| Cable entry | Gland entry at one end of the enclosure |
| Enclosure colour | Yellow with dark grey base |
Ordering the COP-4B from IEHC
IEHC (Zhejiang iehc Electrical Technology Co., Ltd) has manufactured industrial control equipment in Yueqing, Zhejiang since 2003. To quote the COP-4B accurately, send the number of control functions you need, the supply voltage and control-circuit voltage, the cable entry direction, and any button labelling or branding requirement.
Confirm the required function list against your hoist, hatch or travel-drive wiring before ordering so the pendant is supplied with the correct contact arrangement.
Send your specification to IEHC for a configuration check and quotation, or review the wider control handles and pendant switches range.
FAQ
How many buttons does the COP-4B control box have?
Four spring-return push buttons in a single hand-sized enclosure.
What protection rating does the COP-4B offer?
The enclosure is rated IP54, protecting against dust ingress and water sprayed from any direction.
Can the four buttons drive two separate actuators?
Yes. The four functions can be assigned as required — for example two directions for a main actuator and two for a secondary one. Confirm the function list when ordering.
What cable do I need for a four-button station?
The conductor count depends on your contact arrangement. Send the wiring requirement with your enquiry so IEHC can confirm the cable entry and gland size.
