Description
COP-A2B adds a mushroom-head emergency stop to the two-button hatch control box. The station gives a hydraulic hatch or door drive a local control point with two direction buttons and a dedicated stop actuator that can be reached without looking away from the mechanism.
Emergency stop plus two direction buttons

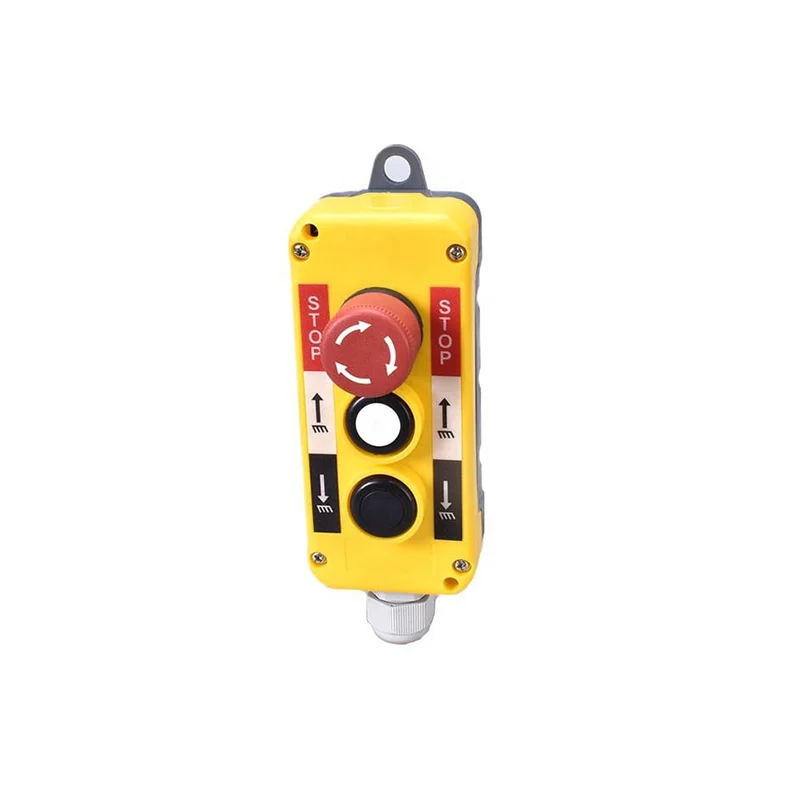

The upper actuator is a red mushroom-head emergency stop; below it sit the two spring-return direction buttons used for hold-to-run control of the drive. That combination lets the operator stop the movement immediately and then drive it back, using one hand on one station.
The emergency stop is a twist-release mushroom head with direction arrows moulded into the cap, so the release action is unambiguous under pressure.
Protection for wet and dusty service positions
The enclosure is rated IP54, protecting against dust ingress and water sprayed from any direction. It is suited to outdoor hatch positions and dusty plant areas, but not to continuous immersion.
Spring-return operation
Both direction buttons are spring-return, so the drive stops as soon as the button is released. The emergency stop is a maintained actuator that must be deliberately released before restarting — a distinct action from the momentary direction buttons.
Mounting and wiring
The cable enters through a gland on one side of the housing and the enclosure closes with screws around a gasket. The emergency stop adds contacts to the circuit, so plan the conductor count and terminal space before ordering.
Because an emergency stop forms part of the machine safety function, its circuit design, wiring category and functional testing must follow the applicable machinery safety requirements for the installation.
Specifications
| Model | COP-A2B |
|---|---|
| Control functions | 1 emergency stop + 2 spring-return push buttons |
| Emergency stop type | Red mushroom head, twist release |
| Enclosure protection | IP54 |
| Mounting | Surface / panel mounting with mounting tab |
| Cable entry | Cable gland |
| Enclosure colour | Yellow with dark grey base |
Ordering the COP-A2B from IEHC
IEHC (Zhejiang iehc Electrical Technology Co., Ltd) has manufactured industrial control equipment in Yueqing, Zhejiang since 2003. To quote the COP-A2B accurately, send the number of control functions you need, the supply voltage and control-circuit voltage, the cable entry direction, and any button labelling or branding requirement.
Confirm the required function list against your hoist, hatch or travel-drive wiring before ordering so the pendant is supplied with the correct contact arrangement. State whether the emergency stop must be wired as a normally closed, positively opening contact in your safety circuit.
Send your specification to IEHC for a configuration check and quotation, or review the wider control handles and pendant switches range.
FAQ
How many actuators does the COP-A2B have?
Three: one red mushroom-head emergency stop and two spring-return direction buttons.
How is the emergency stop released?
The mushroom head is a twist-release type, with the release direction marked on the cap.
What protection rating does the COP-A2B offer?
The enclosure is rated IP54, protecting against dust ingress and water sprayed from any direction.
Can the emergency stop be wired into my machine safety circuit?
The station provides a dedicated stop actuator, but the safety circuit category, wiring and functional testing must be designed for your machine. Confirm the required contact configuration with IEHC when ordering.
