YJ Electric Chain Hoist (Fixed Type)

Description

The YJ fixed-type electric chain hoist is the simplest configuration in the YJ range: it is suspended at one point and lifts vertically, with no travelling trolley. It is the right choice when a load only ever needs to be raised and lowered at a single station, because it avoids the cost, weight and maintenance of travel gear that would never be used.

When a fixed hoist is enough

Fixed hoists suit single-station lifting: a workstation where parts are raised to a bench or fixture, a service position where equipment is lifted for maintenance, or a dedicated point on a production line. The hoist can also be combined with a monorail or cantilever arrangement where the horizontal movement is provided by a separate travelling mechanism rather than by the hoist itself.

If the load must move horizontally along a beam as well as vertically, a running or low-headroom configuration is the better match.

Compact body and hook height

The optimised body pairs a high-performance motor with a matched reducer and a compact electronic control system, which keeps the body short so the hook can be raised higher inside a confined space. Overall height is 408 mm on the YJ0.5-01 and YJ01-01 bodies and rises to 510 mm on the YJ02-02.

Easy maintenance

The body combines a rigid frame with a flexible internal layout, so components can be replaced quickly without dismantling the complete hoist. Electrical components and the brake can be checked in place, which saves maintenance time on a unit that is often on the critical path of a production station.

Voltage and control options

Input voltage covers 110 V to 480 V, and the control circuit uses a low safety voltage over a 24 V to 48 V range. That allows the same hoist family to be supplied for different markets and for plants running more than one supply standard, and it keeps the pendant control voltage low at the operator position.

Technical parameters

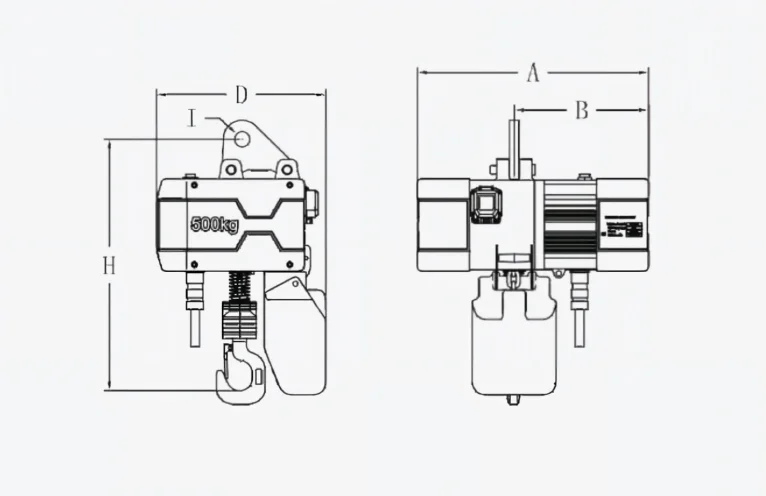

Overall dimensions (mm): YJ0.5-01 and YJ01-01 H 408; YJ01-02 H 475; YJ02-02 H 510. A 375 / 396, B 218 / 239, D 275, I φ25.

Lifting height can be customized — the standard table shows 4 m, but the required travel should be stated with the enquiry.

Information IEHC needs to quote

Capacity alone does not determine the correct hoist. Send the rated load including any below-the-hook lifting device, the required hook travel, the available headroom, the supporting beam or structure, the duty the hoist will see (lifts per hour and daily running time), the supply voltage and frequency, the control voltage and method, the operating environment, and whether a fixed or travelling arrangement is required.

Lifting height can be customized, so state the vertical travel you actually need rather than selecting from the standard column alone.

Ordering the fixed-type hoist from IEHC

IEHC (Zhejiang iehc Electrical Technology Co., Ltd) has manufactured industrial electrical equipment in Yueqing, Zhejiang since 2003 and holds CE certification across its product lines.

Send the rated load, hook travel, suspension point details, duty, supply and control voltage. If the load must also travel along a beam, compare the YJ electric chain hoist (Running Type), YJ electric chain hoist (Low Headroom), YJ electric chain hoist (Coaxial) configurations. Send your specification to IEHC for a configuration check, or review the full electric chain hoist range.
